Installation

DIY Instructions

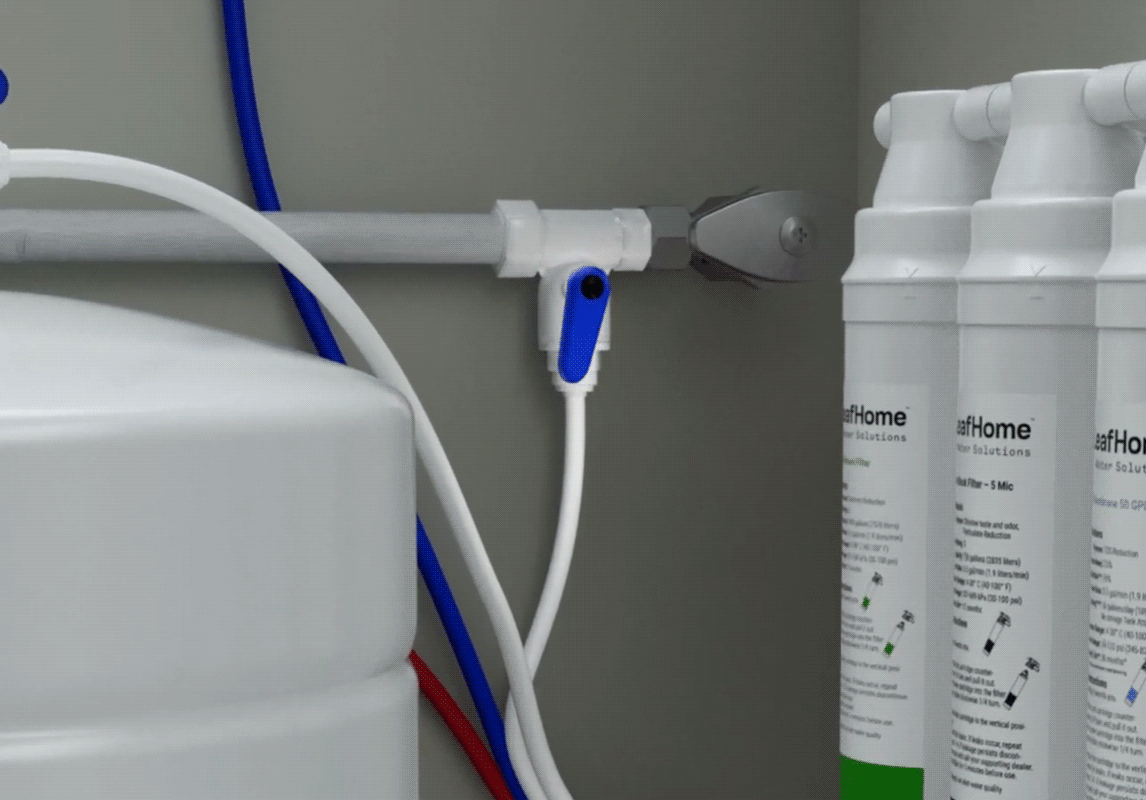

Step 1: Shut off supply

Turn the valve to shut off the cold water supply to the filter manifold.

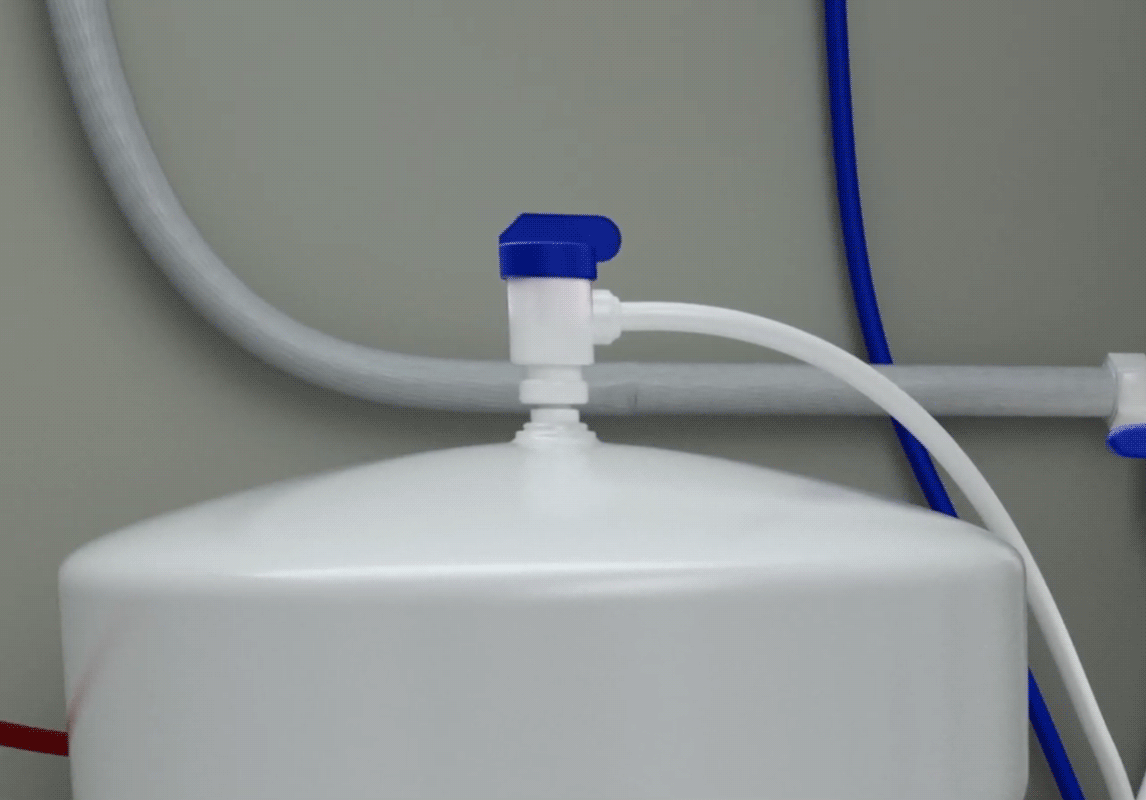

Step 2: Close storage tank

Turn the valve on the top of the storage tank.

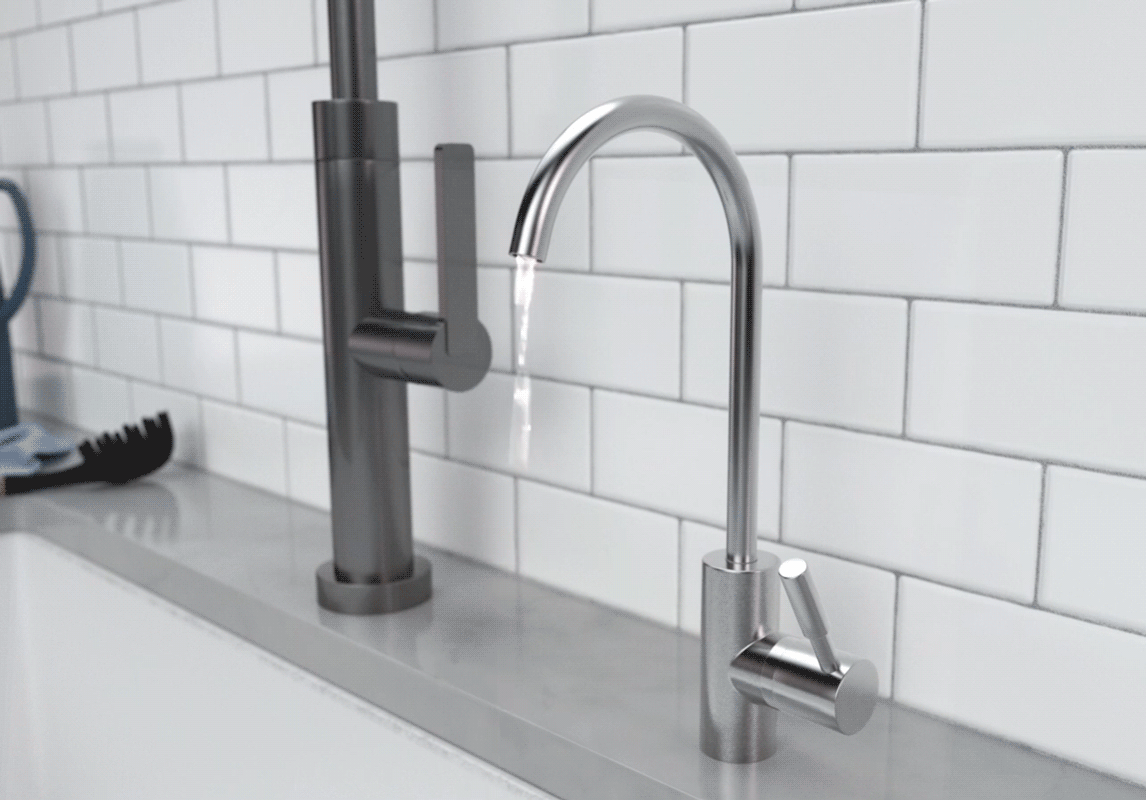

Step 3: Depressurize

Turn on the faucet to depressurize the system.

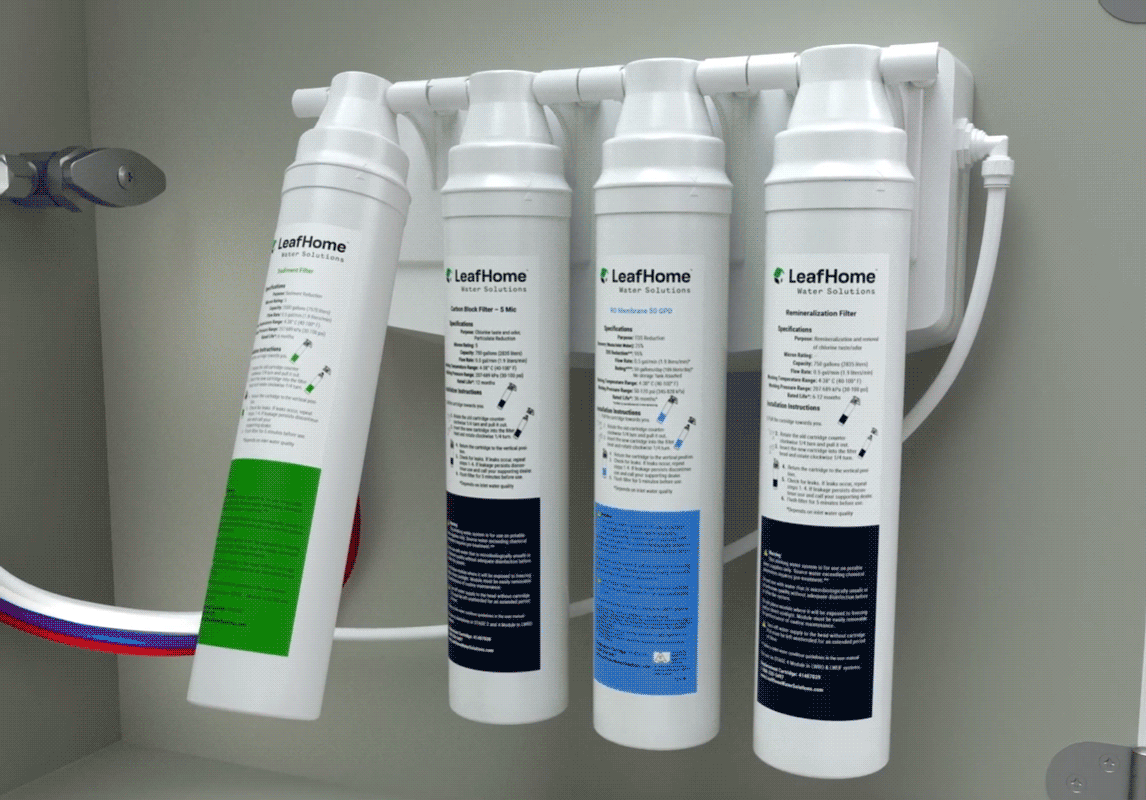

Step 4: Remove filters

Pull the cartridge towards you so that becomes tilted. Rotate the cartridge a quarter turn to unlock it. Pull down to remove the filter.

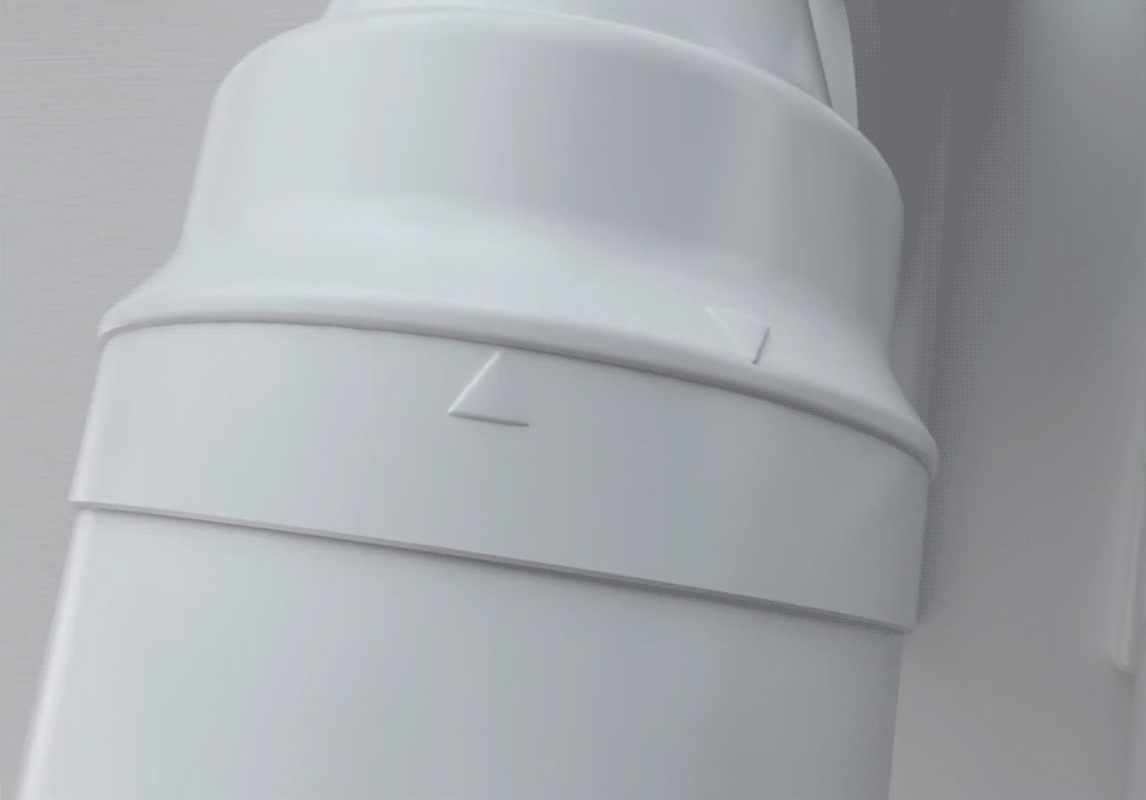

Step 5: Insert new filters

Insert the new cartridge into the filter head and rotate a quarter turn, making sure the arrow markings line up. Tilt the filter back to an upright position.

Step 6: Turn system back on

Turn on the storage tank valve first and then the cold water supply valve. Flush the new filters by filling and emptying the storage tank 3 times. Check for leaks.
